Perfect Combination of Practical Technology Optical LED street Light

Model Number : EK-LDC16
Бүтээгдэхүүний нэр: LED гудамжны гэрэл
Санал болгож буй ватт: : 50w 100w 150w 200w
Waterproof Index : IP66
Газар хөдлөлтөд тэсвэртэй индекс: IK08 IK09
Working Temperature(℃): -20-50
Surface Color : RAL9007 (available on request)
Contain Accessories : Complete finished street lights

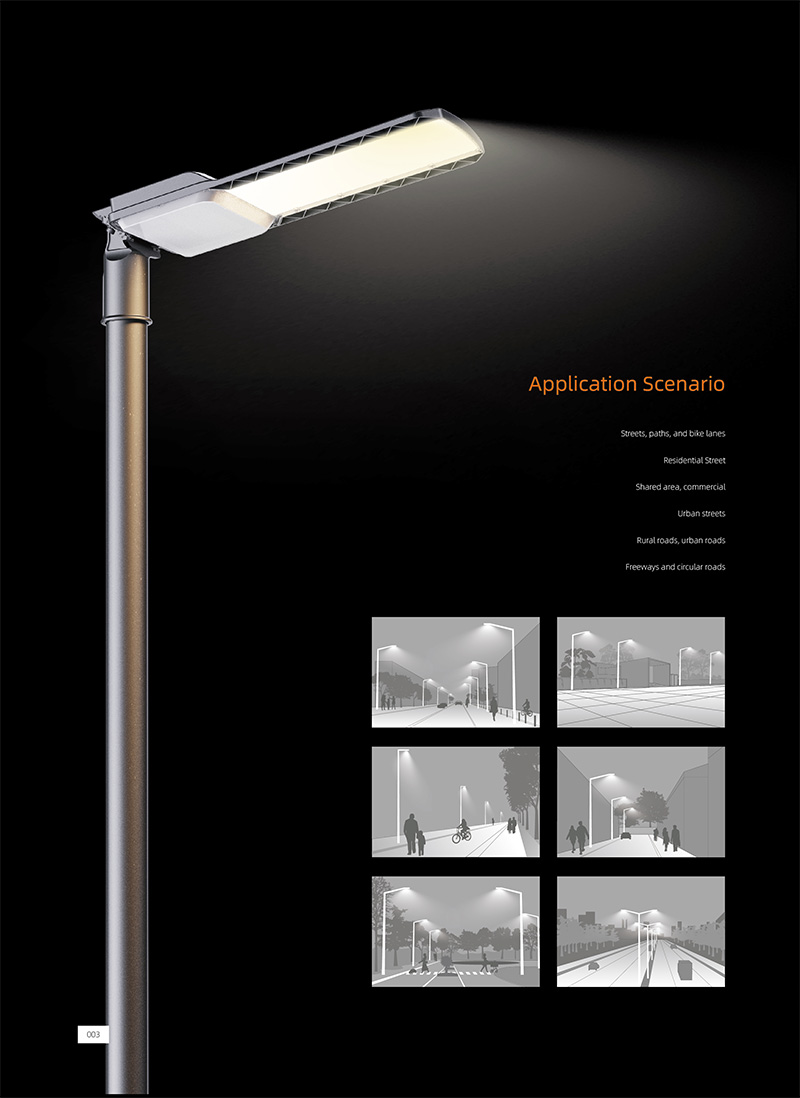

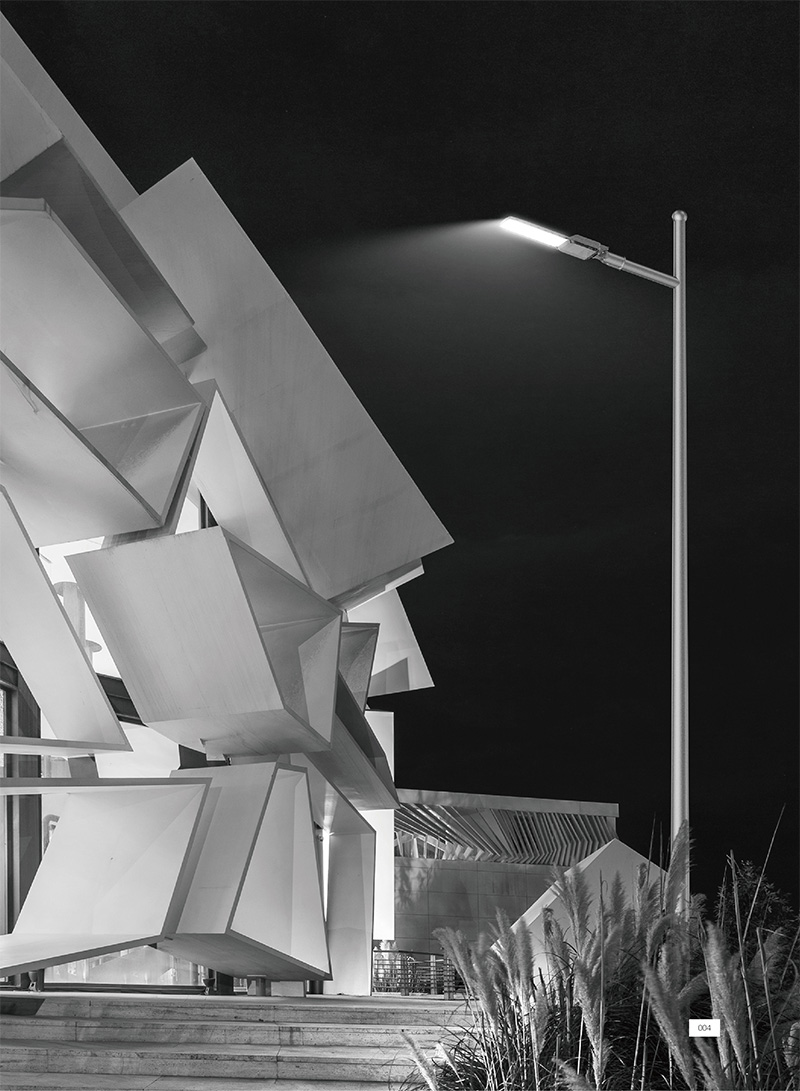

Application Scenario

  • Streets,Paths and bike lanes
  • Residential Street
  • Shared area, commercial
  • Urban streets
  • Rural roads,urban roads
  • Freeways and cicular raods

Technical Norm

General highlights

  1. Used for any outdoor lighting places such as roads, squares
  2. Working temperature: -30 。 C/+50 。 c

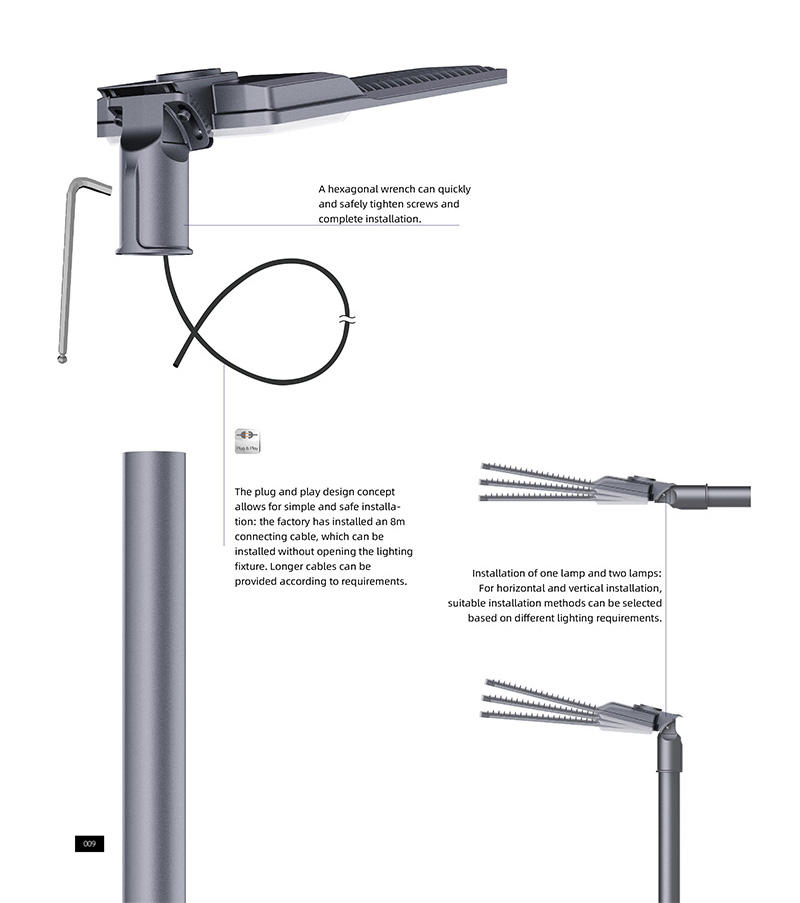

  3. Adopting buckle design for easy installation and maintenanceLumen
  4. Using high-quality chips
  5. Less light decay, long-lasting and durable
  6. Lamp poles with different calibers
  7. Excellent heat dissipation



Optical properties

  1. Different lens arrangements in different areas and installation
  2. Uniform light distribution
  3. Modular design of light source for easy replacement
  4. output(absolute metering): 100o0lm-400oolm
  5. Color temperature: 2200K-6500K
  6. Color rendering index:>70



Shell and Finis

  1. Corrosion resistant die cast aluminum casing Cancer-A Cancer-B
  2. Electrostatic powder coating
  3. Protection level: IP66
  4. Impact protection: IK09

Technical Parameter

Technical  Parameter
ЗагварEK-LDC16-50WEK-LDC16-100WEK-LDC16-150WEK-LDC16-200W
Хүч50 Вт100Вт150 Вт200 Вт
Оролтын хүчдэлAC100-277V
Давтамжийн хүрээ50Гц/60Гц
Эрчим хүчний хүчин зүйл＞0.95
Бүхэл бүтэн гэрэлтүүлгийн эффект180lm/w
LED ашиглалтын хугацаа50000H
Дүрслэх индексCRI70
Өнгөний температур2200K-6500K
IPIP66
IKIK09
Ашиглалтын температурхасах 30+50℃
Хадгалах температурminus 20+60℃  10%-90%RH
Линзний материалКомпьютерийн линз
Суурилуулалтын өндөр6-8mm6-8mm8-10 мм10-12 мм

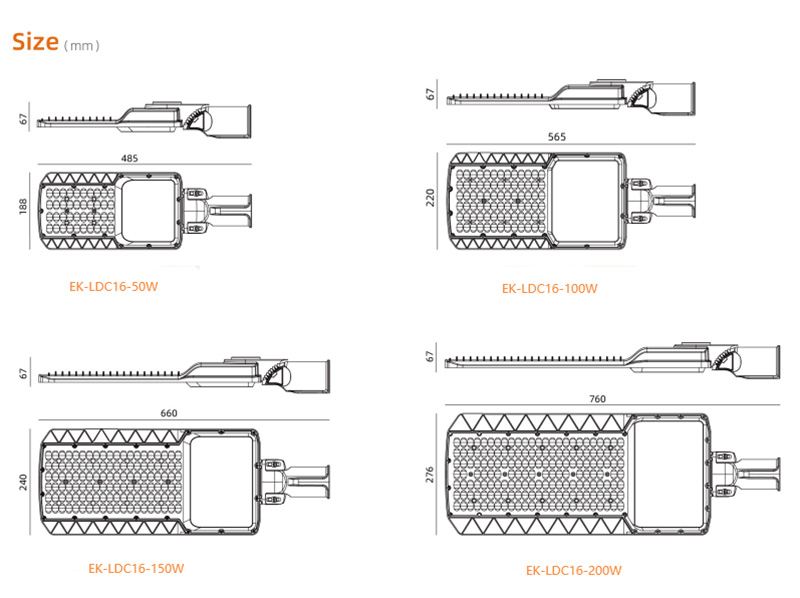

Size

Street Lamp Series

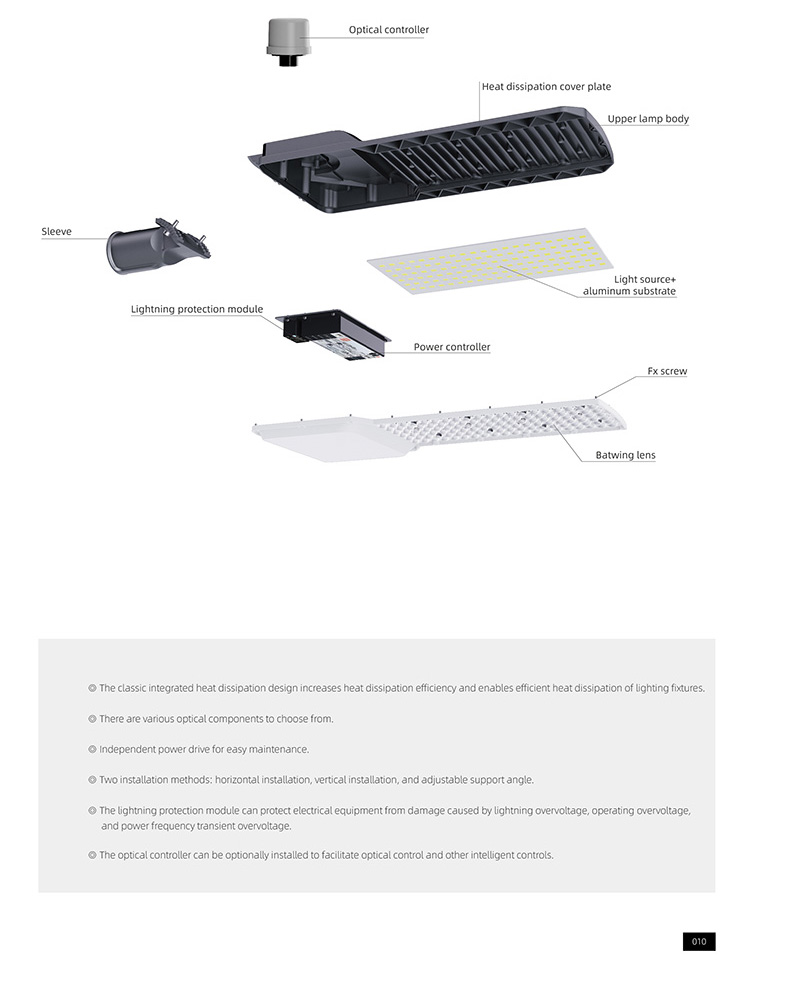

Strcture Display

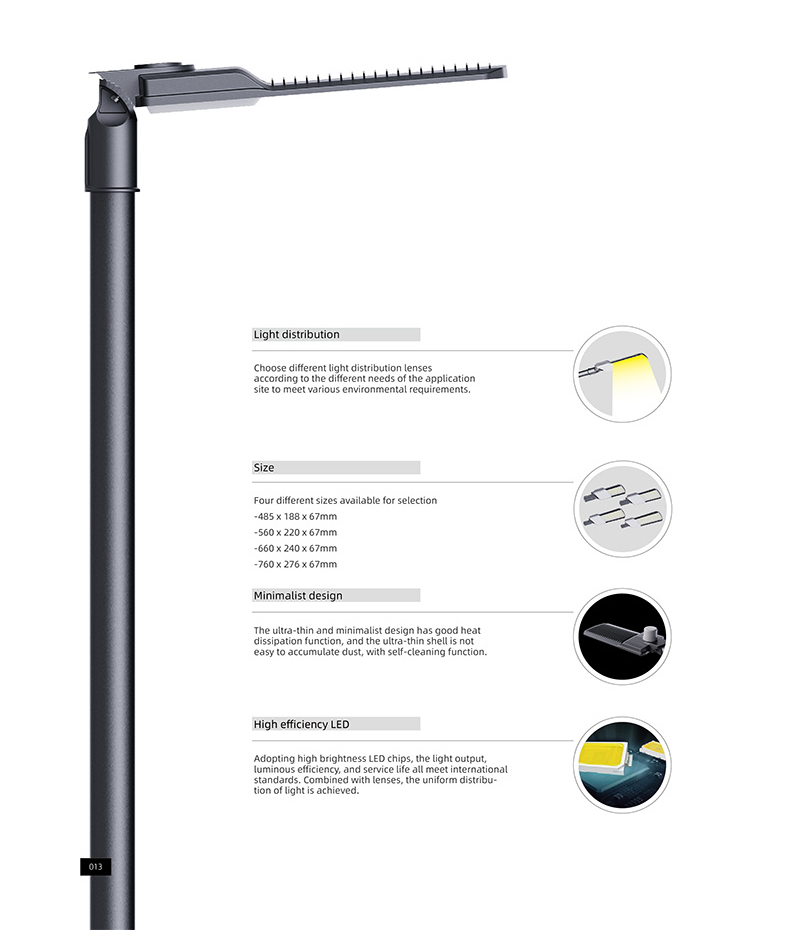

Detail Highlights

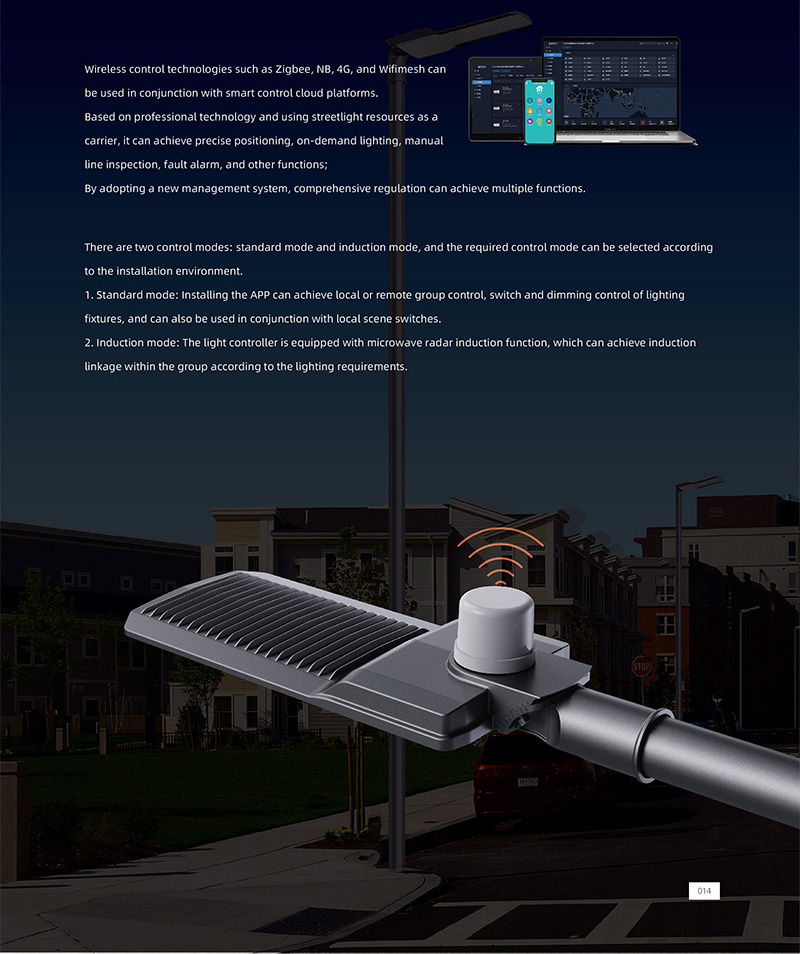

Intelligent Controller Design
